Customizable Living Prefab Container House 5800*2480*2470mm Modern

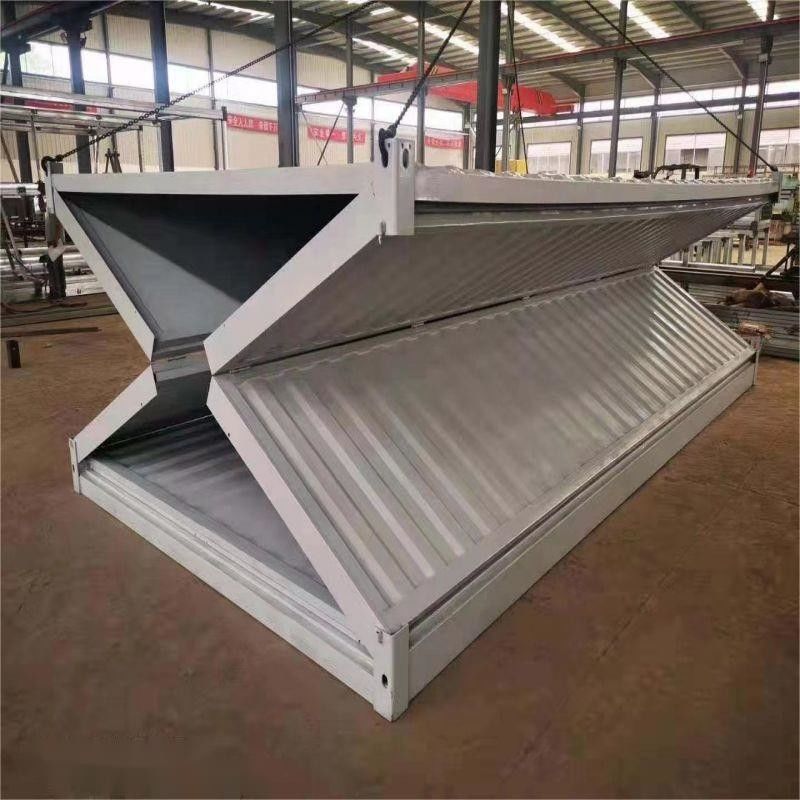

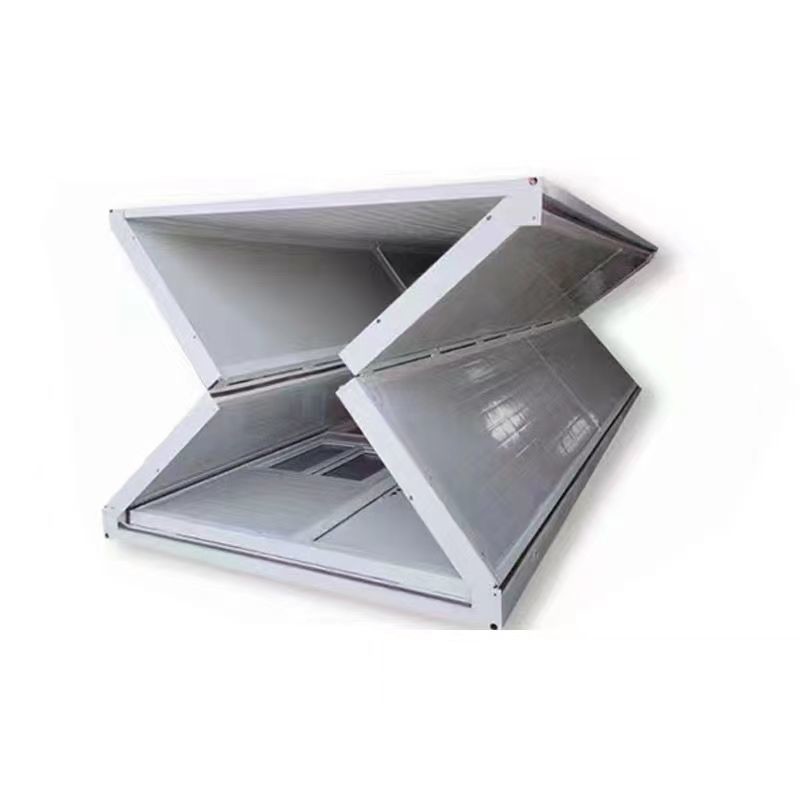

Z-shaped folding prefab house

Top Frame
2.5mm

op crossbeam 170mm

Paint top side beam 170mm

Galvanized 80 steel

30 * 30mm square tube

20 * 20mm square tube

Bottom Frame
2.5mm

Baking paint bottom crossbeam 160mm

Paint bottom side beam 160mm

50 * 100mm square tube formwork support

Column

Post baking paint Post 210 * 150mm

Baking lacquer connector

Corner piece

Baking paint high-end large corner piece 150 * 210mm

Baked paint high-end large angle piece 150 * 210mm

Color roll sealing

0.45mm color steel skin plate, 360 bottom bite, overall butyl tape waterproof

Top insulation

50mm insulation cotton, PE resin moisture-proof film

down pipe

50mm , PVC down pipe

Suspended ceiling tile

831 suspended ceiling tile 0.3mm

annex

skirting line

Internal corner of column

Colored steel internal corner line+fixing parts

ground

1.0 Floor leather

Floor

18mm calcium silicate board

Advanced distribution

Copper wire: 6mm ² Entry line, 4mm ² Air conditioning line, 2.5mm socket line, 1.5mm light line
A three hole socket
Three five hole sockets
A single opening
One LED strip light
An advanced eight circuit distribution box.One 32A Chint Residual-current device and three Chint circuit breakers
One industrial socket and industrial socket wire (with grounding wire for electrical distribution)

Hardware

Drill tail wire, round head nail, dry wall nail, adhesive, etc

Door

Medium grade steel door (970 * 1970 * 50, flat socket type, pressure collar, door thickness 0.4mm, frame 1.0mm}

Window

Winning the bid for plastic steel supplier · single glass double push belt anti-theft window, screen window, 930 * 1130mm

Wallboard

950 type 50 wall panel, 04 double-sided floor leather pattern board, 80 kg rock wool single sided gauge film
