Detail Information
Product Description

Detail Information
Warranty:	1 Year	After-sale Service:	Online Technical Support
Application:	Hotel	Material:	Sandwich Panel, Steel, Other, Steel + Sandwich Panel
Use:	Hotel,House,Office,Shop,Villa	Product Type:	Expandable Container
Design Style:	Modern	Product Name:	Container Houses Home
Color:	White Or Customized Color	Keyword:	Mobile Living Container House
Type:	Expanable	Size:	5800(L)6400(W)2530mm(H)
Usage:	Workshop Warehouse Construction Office	Door:	Steel Door
Structure:	Galvanlized Steel Frame	Window:	Aluminum Window
Port:	Qingdao,Rizhao,Beibu Gulf,Tianjin,Guangzhou

Product Description

Products Description

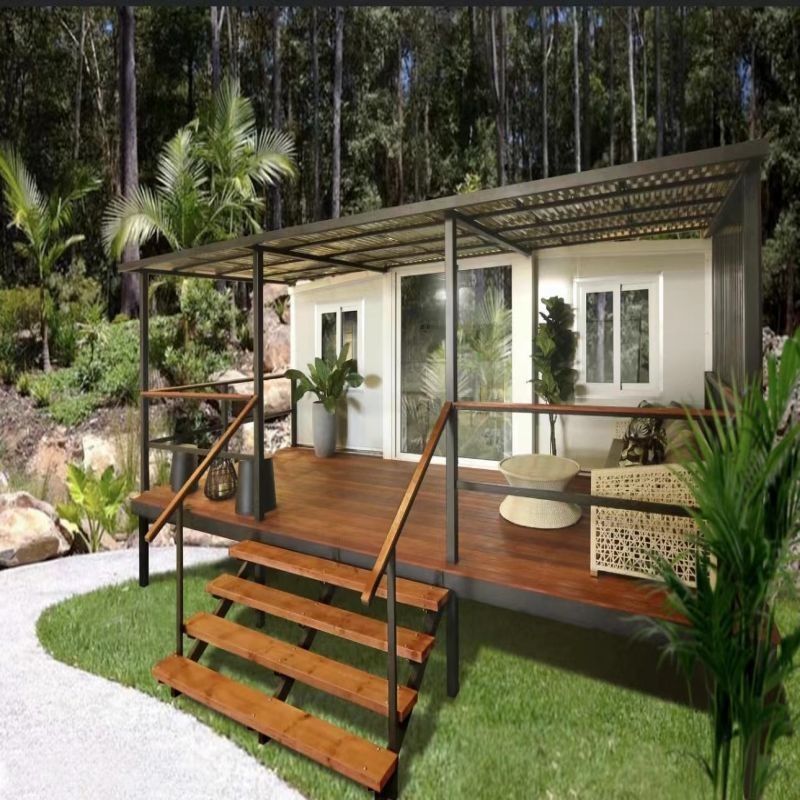

Usage Scenario

Single apartment

One bedroom, one bathroom and one kitchen

Two bedroom, one bathroom and one kitchen

Product specifications：	Folded Size: 5800(L)2200(W)2530mm(H) Unfolded Size: 5800(L)6400(W)2530mm(H)
Name	Model
Roof structure	Galvanized steel frame: 120mm60mm2.5/80mm80mm1.5/20mm40mm1.0（Ceiling bracket）1020*1.0（Water separation purlin）
Bottom structure	Galvanized steel frame 120mm60mm2.5/80mm80mm2.0/80mm40mm2.0
Fold Frame	Galvanized steel frame 80mm80mm2.0/80mm40mm2.0//1.5mmU-shaped closure/L-type，Z-shaped water baffle
Corner pillar	Galvanized steel pipe: 1501503mm/80802.5
Hanging head	210160140mmNational standard dedicated marine cast iron lifting head/Top 4 sets，Bottom 4 sets
External wall panel	75mm rock wool composite/EPS Sandwich cleaning plate，two-sided 0.3/0.4mm thick color steel plate
Inner wall panel	50/75mm thick rock wool composite board，two-sided 0.3/0.4mm thick color steel plate
Roof slab	side 75mm EPS Sandwich board，two-sided 0.4mm thick color steel plate
Middle top cover	03/05/06mm thick color steel plate
Floor	18 calcium silicate+1.6 plastic cement/high strength bamboo wood membrane board+PVC decorative layer of floor leather
Connection hinge	Heavy duty steel hinge 15mm、10mm
Entrance door	KFC Gate/Aluminum alloy insulated broken bridge tempered glass 1930*2000mm
Window	Socket type plastic steel sliding window/Aluminum alloy sliding window1100*930/rotate，one double layer tempered glass wall.
Angular line	Wooden plastic decorative line
Electrical System	Waterproof industrial socket（Including plug）
		Distribution box
		Circuit breaker、Leakage protector
		Dedicated socket
		Approved cable
		LED Ceiling lamp
Sealing Rubber Strip	Sealing tape、Aluminum foil butyl adhesive
Accessory	Screws, etc
Accessory	793 structural adhesive、995 Silicone weather resistant adhesive、Transparent glass adhesive
Bathroom	1set closestool、1set wash basin、1set shower head、Floor drain、water supply and drainage

Installation instructions

Certifications

Factory Display

Weifang Shengde Steel Structure Engineering Co., Ltd. is located in Weifang City, China,which is a large-scale enterprise integrating R&D, production and processing.We have been deeply involved in the field of steel structure and modular housing for more than 20 years.

Shengde is committed to serving the world with temporary construction space, providing customers with first-class products and efficient services.

FAQ

Q1: What are your main products? A: Our main products have steel structure,warehouse,workshop,prefab house,container house, steel car garage,steel aircraft hangar,light steel villa,sandwich panel and other construction materials. Q2: What will client provide before factory offers good quotation? A: When we receive inquiry from client, client please providing us with information of house dimensions, draft drawing, layout and materials for prefabricated house. We will design the drawings and offer competitive quotation with the above information. Q3: What are main materials of prefabricated house? A: Our prefabricated house materials mainly include light steel structure, sandwich panel, roof tile, door, window, covers, screws and other accessories. Q4: What drawing of house will factory supply? A: Plan drawing, elevation drawing, sectional drawing, foundation drawing, installation drawing.

Product Details:
Place of Origin:	Shandong, China
Brand Name:	Shengde
Payment & Shipping Terms:
Minimum Order Quantity:	2 sets
Price:	$8,999.00/sets 2-12 sets
Packaging Details:	Standard export package,more information please contact us.
Supply Ability:	12000 Set/Sets per Year
